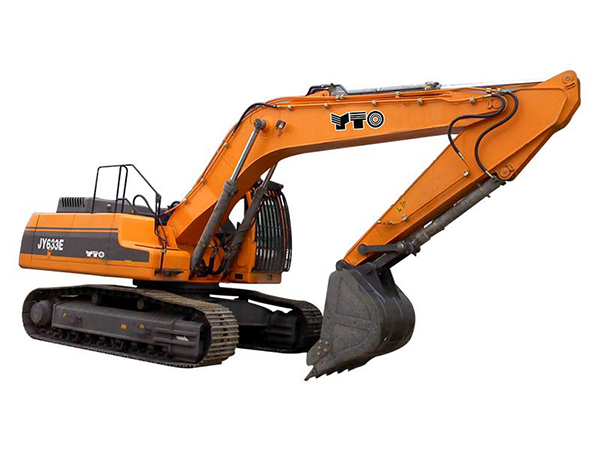

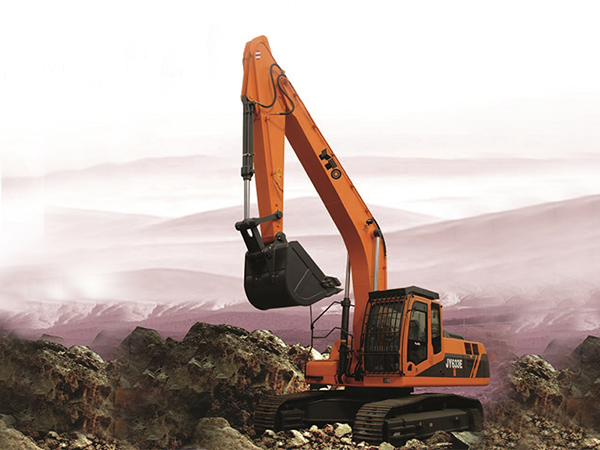

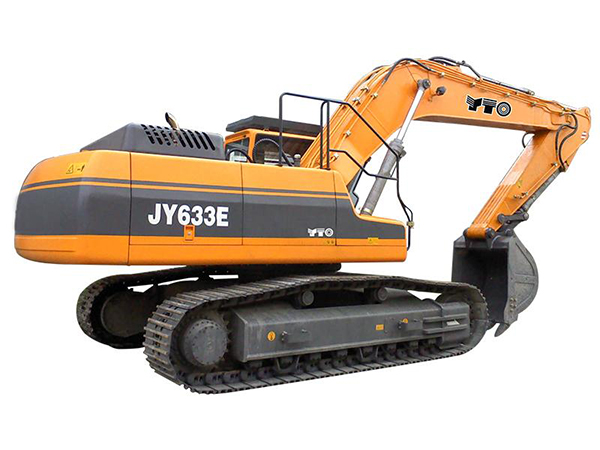

JY633E Crawler Hydraulic Excavator

Home » Products » Construction Machinery » JY633E Crawler Hydraulic Excavator


Suitable For Hydro-Electric Project, Mining, Road Construction, City Dwellings Construction, Pipe Laying And Road Repair Projects.

Key Features:
1. The JY633E Is The Latest Generation Of Hydraulic Crawler Excavator. With All Key Components Selected From Renowned International Manufacturers Combined With State Of The Art Hydraulic Electrical System And Structural Engineering. It Provides The Most Efficient And Reliable Performance.
2. Dual Hydraulic Pump System With Reverse Flow Control To Maximize Engine Output Power.
3. High Efficiency And Health Monitoring Through Advanced Electrical Systems
4. High Controllability And Performance Through Smart, Responsive Integrated Hydraulic Control System With Priority Functions.
5. Ergonomically Design Air Conditioned And Wide Vision Cabin For Comfort Of The Operator;

Main Specification
Model JY633E
Operating Weight (T) 32.7
Standard Bucket Capacity (m3) 1.53
Range of Bucket Capacity(m3) 1.38~1.53
Diesel Engine Manufacturer Cummins
Engine Model 6C8.3
Engine Power (kw/r/min) 198/2200
Hydraulic Flow Rate(L/min) 2X260
Hydraulic Pressure (MPa) 30
Travelling Speed (km/h) 0~2.9/5.1
Grade Climbing Capacity (%) 65
Slewing Speed (r/min) 11
Bucket Digging Force (kN) 188
Stick Digging Force (kN) 137

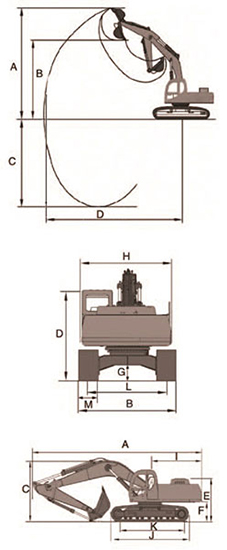

Operating Scope
Stick Length (mm) 3200
Maximum Cutting Height (mm) 10510
Maximum Dumping Height (mm) 7355
Maximum Digging Depth (mm) 7400
Maximum Reach (mm) 10800
Overall Length (mm) 10620
Overall Width (mm) 3180
Overall Height of Boom (mm) 3560
Overall Height of Cab (mm) 3380
Engine Cover Height (mm) 2680
Counterweight Clearance (mm) 1230
Ground Clearance (mm) 470
Upperstructure Width (mm) 2960
Rear-End Length/Swing Radius (mm) 3215
Overall Track Length(mm) 4690
Track Length on Ground(mm) 3780
Gauge Width(mm) 2580
Track Width(mm) 600
Ground Pressure(Mpa) 0.066
Fuel tank capacity(L) 500
Hydraulic oil tank capacity (L) 260
Engine oil capacity (L) 26
