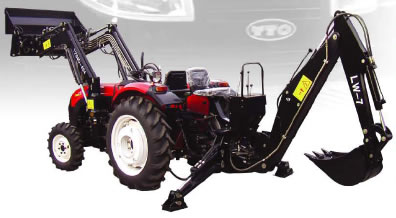

Tractor with Loader
Front Loader and Rear Excavator
1. Front Loader
Loader Model | Unit | TZ02D | TZ03D | TZ04D | TZ06D | TZ08D | TZ10D | TZ12D |
Tractor Model | HP | 15-25 | 20-40 | 30-55 | 40-60 | 50-75 | 70-100 | 90-130 |
Max. Lift Height at the Connection Pivot Point (A) | mm | 2350 | 2552 | 2740 | 3010 | 3400 | 3710 | 3970 |
Dump Height (C) | mm | 1730 | 1840 | 2100 | 2370 | 2480 | 2720 | 3000 |
Bucket Width | mm | 1250 | 1250 | 1400 | 1500 | 1600 | 1700 | 2000 |
Bucket Capacity | m3 | 0.18 | 0.18 | 0.2 | 0.22 | 0.43 | 0.46 | 0.6 |
Rated Lifting Capacity | kg | 200 | 200 | 300 | 400 | 600 | 800 | 1000 |
2. Rear Excavator

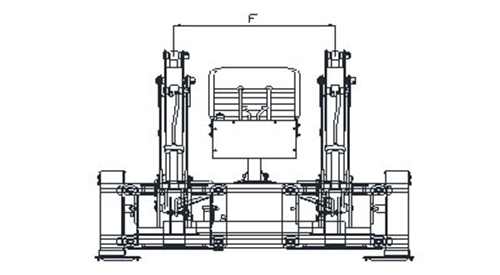

Model | Matched Power (HP) | Max. Excavation Depth (A) (mm) | Max. Dump Height (B) (mm) | Max. Excavating Height (C) (mm) | Working Radius (D) (mm) | Ground Clearance (E) (mm) | Lateral Displacement (F) (mm) | Bucket Width (mm) | Bucket Capacity (m3) | Net Weight (kg) |
LW5 | 15-25 | 1650 | 1530 | 2600 | 2300 | 450 | 0 | 340 | 0.025 | 360 |
LW6 | 20-35 | 2000 | 1860 | 2970 | 2700 | 450 | 0 | 340 | 0.03 | 550 |
LW6E | 760 | 600 | ||||||||
LW7 | 30-50 | 2400 | 2050 | 3210 | 3140 | 450 | 0 | 380 | 0.04 | 560 |
LW7E | 760 | 620 | ||||||||
LW8 | 45-90 | 2800 | 2380 | 3460 | 3600 | 500 | 0 | 420 | 0.05 | 630 |
LW8E | 1000 | 700 | ||||||||
LW10 | 70-120 | 3200 | 2650 | 3770 | 3920 | 500 | 0 | 500 | 0.07 | 800 |
LW10E | 1200 | 1000 | ||||||||
LW12 | 100-140 | 3655 | 3627 | 5040 | 4510 | 700 | 0 | 575 | 0.13 | 1500 |
